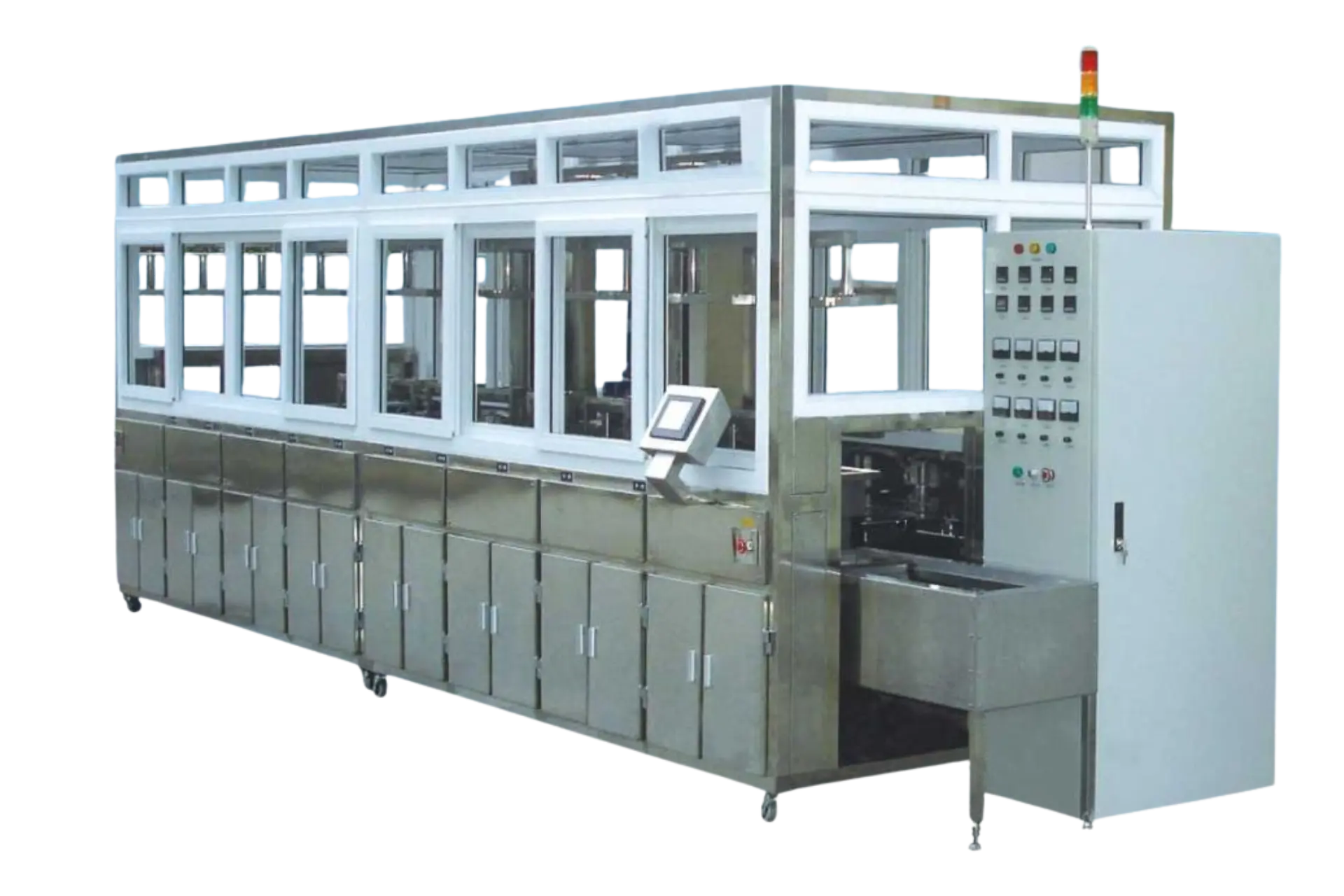

Ultrasonic Cleaning / Bin Washing Machine

The Ultrasonic Cleaning / Bin Washing Machine from Ecotech Industries is a high-performance cleaning solution designed to remove dirt, oil, grease, and microscopic contaminants from industrial parts and bins. Using advanced ultrasonic technology combined with durable stainless steel construction, this machine provides deep cleaning results that traditional washing methods cannot achieve.

Engineered for industries where cleanliness is critical, the system ensures compliance with global standards and enhances the performance and reliability of components.

What is an Ultrasonic Cleaning / Bin Washing Machine?

An ultrasonic cleaning machine works by generating high-frequency sound waves in a cleaning solution. These sound waves create millions of microscopic bubbles through a process called cavitation. When these bubbles collapse, they release powerful energy that removes dirt and contaminants from even the smallest surfaces and hidden areas.

When combined with a bin washing system, the machine not only cleans individual components but also ensures industrial bins and containers are free from residues, oil, and dust — making it an all-in-one cleaning solution.

Key Features of Ultrasonic Cleaning / Bin Washing Machine

1. Ultrasonic Cleaning Technology

The machine uses high-frequency ultrasonic waves to achieve deep and uniform cleaning. Unlike manual washing, ultrasonic cleaning reaches tiny crevices, blind holes, and complex geometries where contaminants usually hide.

2. Stainless Steel (SS) Construction

All tanks, chambers, and supporting structures are built from SS 304 stainless steel, offering durability, corrosion resistance, and long service life in demanding environments.

3. Bin Washing Integration

The system includes a dedicated bin washing feature that cleans large storage containers or industrial bins used for handling parts. This ensures a hygienic and contamination-free environment throughout the production process.

4. Automatic Operations with PLC Control

The machine is equipped with PLC controls and HMI interface, allowing operators to run pre-programmed cycles, adjust parameters, and monitor the process in real time.

5. High-Performance Filtration

The integrated filtration system continuously removes dirt, oil, and particles from the cleaning solution, keeping it fresh for longer use and maintaining cleaning quality.

6. Adjustable Cleaning Parameters

Operators can set cleaning time, ultrasonic frequency, solution temperature, and drying cycles, making the machine adaptable for different materials and levels of contamination.

7. Safety and User-Friendly Design

Automatic doors, overload protection, and chamber lighting ensure operator safety and convenience during operations.

Applications of Ultrasonic Cleaning / Bin Washing Machine

• Automotive Industry – Cleaning engine parts, fuel injectors, CRDI systems, and bins used for assembly lines.

• Hydraulic & Pneumatic Systems – Removing oil, metal shavings, and dirt from valves, hoses, and pumps.

• Medical & Pharmaceutical – Sterilizing surgical instruments, medical bins, and lab equipment.

• Aerospace – Precision cleaning of aircraft components that require strict cleanliness.

• General Manufacturing – Washing bins, tools, dies, and various fluid transmission products.

Benefits of Using Ultrasonic Cleaning / Bin Washing Machine

• Deep Cleaning: Removes both visible dirt and microscopic contaminants.

• Efficiency: Reduces cleaning time compared to manual methods.

• Consistency: Delivers repeatable and uniform cleaning results.

• Eco-Friendly: Uses water-based or mild cleaning solutions, reducing harmful chemicals.

• Cost-Effective: Extends the life of parts by maintaining cleanliness, reducing wear and tear.

• Compliance: Meets strict cleanliness standards across industries like automotive and aerospace.
