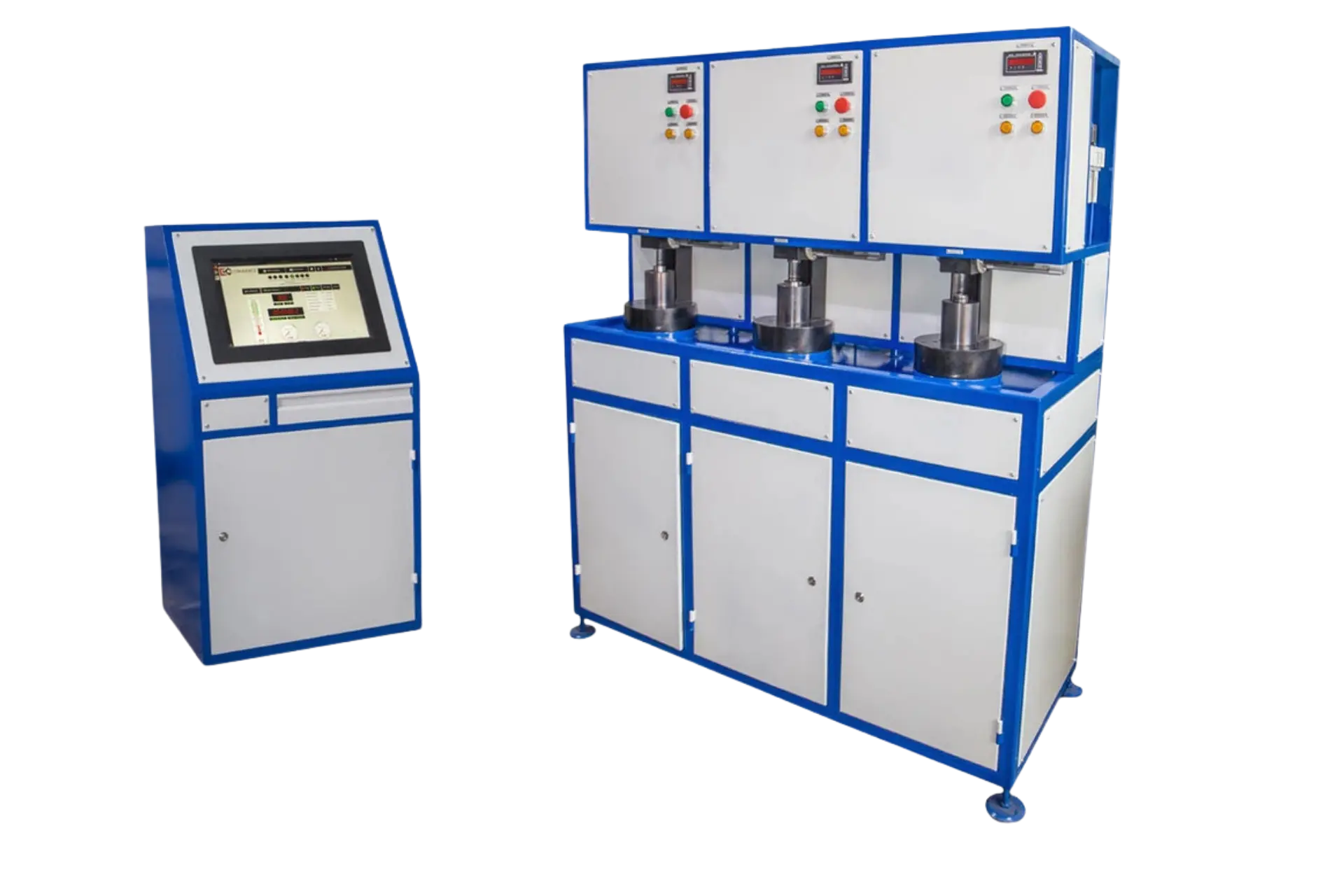

Vacuum Test Bench

The Vacuum Test Bench by Ecotech Industries is a precision-engineered solution designed to perform leak testing and vacuum performance validation on a wide range of industrial components. Built with advanced controls, stainless steel construction, and automation-ready features, this test bench ensures accurate, repeatable results while meeting global quality and safety standards.

Vacuum testing is critical in industries like automotive, aerospace, energy, and manufacturing, where even the smallest leaks can cause major failures. Ecotech’s vacuum test bench is designed for durability, operator safety, and long-term reliability in demanding environments.

Key Features of Vacuum Test Bench

Wide Vacuum Range

The bench is capable of generating and maintaining vacuum levels suitable for testing a variety of industrial components. This ensures flexibility in both low and high vacuum applications.

Stainless Steel Structure

The entire body, chamber, and piping are constructed using SS 304 stainless steel for durability, corrosion resistance, and hygienic operation. The rugged construction guarantees long service life under continuous industrial use.

Advanced Control System

The vacuum test bench integrates PLC control with touchscreen HMI, providing real-time monitoring, automatic cycle management, and easy data handling. Operators can run tests in both automatic and manual modes, depending on the requirement.

Accurate Measurement

Fitted with high-accuracy vacuum transmitters and sensors, the machine provides precise measurement of leaks and vacuum pressure levels, ensuring components meet strict performance criteria.

Data Logging & Graphical Results

Each test cycle is automatically logged, with results stored in Excel format for traceability. Graphical representation of test data allows operators to analyze results quickly and make informed decisions.

Customizable Fixtures

The test bench can be designed with customized fixtures to handle different part sizes and geometries, ensuring flexibility for industries with diverse product lines.

Safety Features

Operator safety is built into the system with polycarbonate transparent doors, safety interlocks, and over-pressure/over-vacuum protection systems. These features ensure safe operation during every test cycle.

Applications of Vacuum Test Bench

The Vacuum Test Bench is widely used across industries for:

• Automotive – Testing fuel tanks, brake components, and vacuum-based systems.

• Aerospace – Validating vacuum performance of aircraft hydraulic and pneumatic parts.

• Manufacturing – Leak detection for plastic, metal, and composite parts.

• Energy Sector – Testing pipelines, valves, and energy storage components requiring vacuum conditions.

• Research & Development – Laboratories and institutes use it for controlled vacuum experiments.

Benefits of Vacuum Test Bench

• Accurate Leak Detection – Identifies even micro-leaks under vacuum conditions.

• Durable Design – Stainless steel build ensures resistance against wear and corrosion.

• Traceable Results – Data logging and graphical representation improve documentation and compliance.

• Operator-Friendly – PLC touchscreen control makes operation simple and reliable.

• Customizable – Designed to suit different components, industries, and standards.

• Safe & Reliable – Integrated safety features protect both operators and test samples.
